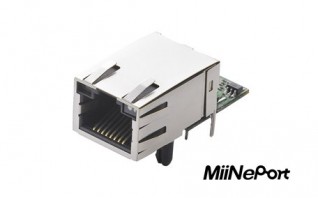

MIINEPORT E1 SERIES
Embedded device server for TTL devices, drop-in module, 10/100M with RJ45 connector, 0 to 55°C operating temperature
Same size as an RJ45 connector—only 33.9 x 16.25 x 13.5 mm
Extremely low power consumption
Uses the MiiNe, Moxa’s second-generation SoC
NetEZ technology makes integration incredibly easy
Variety of operation modes, including Real COM, RFC2217, TCP, and UDP
Extremely low power consumption
Uses the MiiNe, Moxa’s second-generation SoC
NetEZ technology makes integration incredibly easy
Variety of operation modes, including Real COM, RFC2217, TCP, and UDP
Embedded System
- CPU: 32-bit Arm Core
Memory
- Flash: 2 MB
- SDRAM: 4 MB
Input/Output Interface
- Configurable DIO Channels (by software): 1
- Digital Input Channels: 1
- Digital Output Channels: 1
Ethernet Interface
- 10/100BaseT(X) Ports, Auto MDI/MDI-X: 8-pin RJ45
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP) Windows Utility Telnet Console Serial Console
- Management: ARP BOOTP Device Search Utility (DSU) DHCP Client HTTP IPv4 SMTP SNMPv1 TCP/IP Telnet TFTP ICMP
- Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
- Fixed TTY Drivers: macOS versions: 14, 13, 12, 11 and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
- Android API: Android 3.1.x and later
- Virtual Machine: VMWare ESXi (Windows 11 / 10)VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)
- Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x and 4.xmacOS 14, 13, 12 and 11
Serial Interface
- No. of Ports: 1
- Serial Standards: TTL
- Operation Modes: Real COM mode TCP Client TCP Server UDP mode RFC2217
- Baudrate: 50 bps to 230.4 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None Even Odd Space Mark
- Flow Control: None RTS/CTS XON/XOFF
Serial Signals
- TTL: TxD, RxD, RTS, CTS, RST (reset circuit), GND
NetEZ Technology
- NetEZ Functions: ExTrigger SCM (Serial Command Mode) AutoCFG MCSC (Multi-Channel Serial Communication)
Power Parameters
- Input Current: 160 mA @ 3.3 VDC
- Input Voltage: 3.3 VDC
Physical Characteristics
- Dimensions: 33.9 x 16.25 x 13.5 mm (1.33 x 0.64 x 0.53 in)
- Weight: 9 g (0.02 lb)
- Form Factor Type: Drop-in modules
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -40 to 60°C (-40 to 140°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class B
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 5,515,294 hrs
- Standards: Telcordia Standard SR-332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
