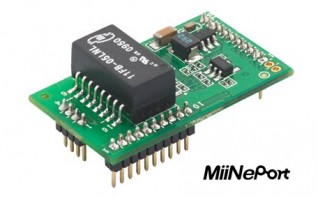

MIINEPORT E2 SERIES
Embedded device server for TTL devices, drop-in module, 10/100M without RJ45 connector, 50 bps to 230.4 Kbps baudrate, 0 to 55°C operating temperature
Smallest embedded device server available—only 29 x 17 x 12.6 mm
Supports EZPower for 3.3 to 5 VDC system power input
Green design with extremely low power consumption
Uses Moxa’s high-quality and reliable second-generation MiiNe SoC
MiiNePort NetEZ technology makes integration incredibly easy
Operation versatility with Real COM/TCP/UDP/RFC2217/MCSC
Supports EZPower for 3.3 to 5 VDC system power input
Green design with extremely low power consumption
Uses Moxa’s high-quality and reliable second-generation MiiNe SoC
MiiNePort NetEZ technology makes integration incredibly easy
Operation versatility with Real COM/TCP/UDP/RFC2217/MCSC
Embedded System
- CPU: 32-bit Arm Core
Memory
- Flash: 2 MB
- SDRAM: 4 MB
Input/Output Interface
- Configurable DIO Channels (by software): 4
Ethernet Interface
- 10/100BaseT(X) Ports, Auto MDI/MDI-X: 4-pin pin header
- Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
- Configuration Options: Web Console (HTTP) Windows Utility
- Management: ARP BOOTP Device Search Utility (DSU) DHCP Client IPv4 SMTP SNMPv1 TCP/IP Telnet TFTP UDP ICMP
- Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
- Fixed TTY Drivers: macOS versions: 14, 13, 12, 11 and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Android API: Android 3.1.x and later
- Virtual Machine: VMWare ESXi (Windows 11 / 10)VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)
- Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x and 4.xmacOS 14, 13, 12 and 11
Serial Interface
- No. of Ports: 1
- Serial Standards: TTL
- Operation Modes: Real COM mode RFC2217 mode TCP Client mode TCP Server mode UDP mode Ethernet Modem mode MCSC mode
- Baudrate: 50 bps to 230.4 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None Even Odd Space Mark
- Flow Control: None RTS/CTS DTR/DSR XON/XOFF
Serial Signals
- TTL: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
NetEZ Technology
- NetEZ Functions: EZPower EZPage SCM (Serial Command Mode) AutoCFG MCSC (Multi-Channel Serial Communication)
Power Parameters
- Input Current: 157 mA @ 3.3 VDC
- Input Voltage: 3.3 to 5 VDC
Physical Characteristics
- Dimensions: 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in)
- Weight: 5 g (0.01 lb)
- Form Factor Type: Drop-in modules
Environmental Limits
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature (package included): -40 to 60°C (-40 to 140°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Environmental Testing: IEC 60068-2-1 IEC 60068-2-3
- EMC: EN 55032/24
- EMI: CISPR 32, FCC Part 15B Class B
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 5,696,350 hrs
- Standards: Telcordia Standard SR-332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
